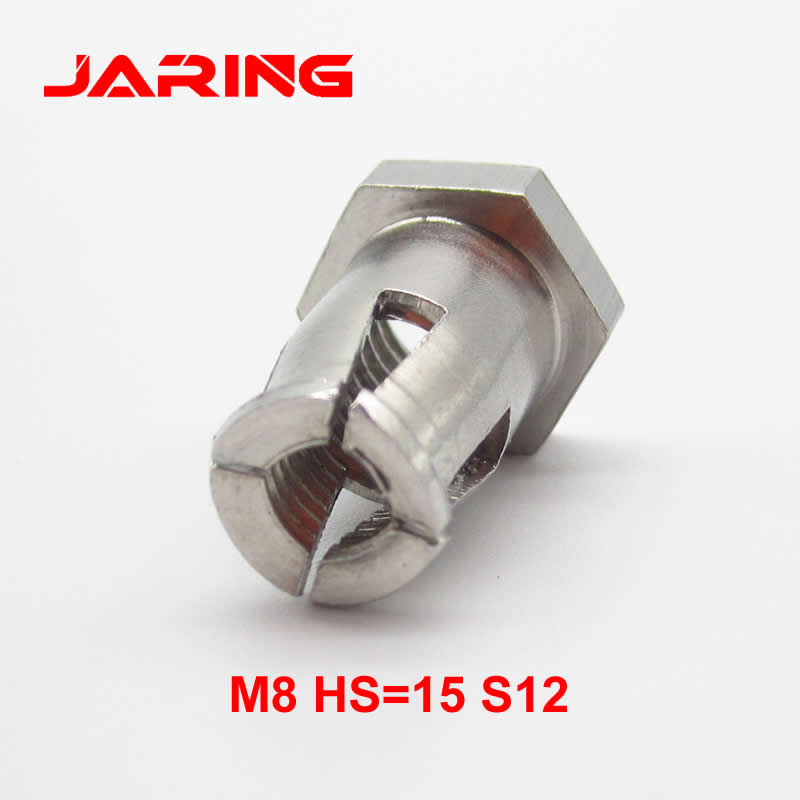

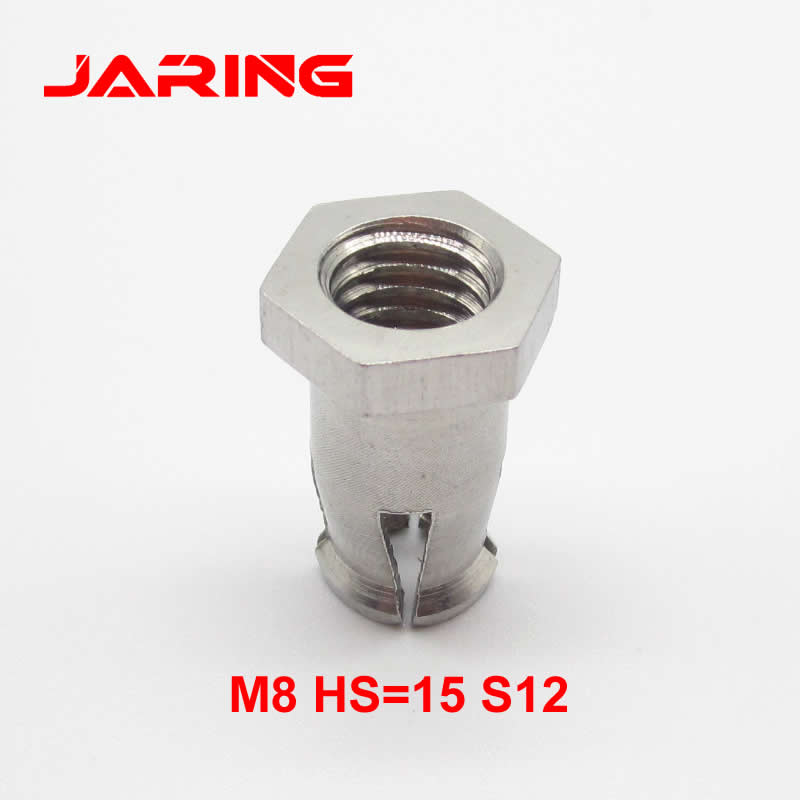

Stone Back Anchor Sleeve M8 (HS=15) S12

Undercut Anchor Sleeve is similar to other Expansion Bolt,

It's fix into the back of the marble,Ceramic Tile,Fiber Cement

Due to the Special Undercut Hole Size

Bottom size is 2mm bigger than straight size

It's much strength then normal expansion bolt


Size: M8 (HS=15) S12

Weight : 4.3Kg/1000Pcs

Packing: 500Pcs/Box , 6Box/Carton , 48Cartons/Pallet

Carton Size : 27*29*17CM

Pallet Size : 80*120CM
Inquiry
UNDERCUT ANCHOR KUA-01 M8



Undercut Anchor M8*15 S12



Anchor Sleeve M8*15 S12



Undercut Anchor Sleeve is alwasy used with Flange Bolt or (Screw +Nut),we call it KUA-01 & KUA-02 .

KUA-01: Anchor Sleeve+Flange Nut+Screw

KUA-02: Anchor Sleeve+Flange Bolt

See the difference between KUA-01 & KUA-02



Undercut Anchor KUA M8 (Hs=15) S10 & S12 difference





1.Product Descriptions

   Name: Undercut Anchor Full Set

   Type: KUA-01

   Material: AISI316/A4 AISI304/A2

   Size: M8*35 (Hs=15) S12

   Contains: Screw +Nut + Anchor Sleeve



UNDERCUT ANCHOR KUA-01





2.Features:

  • The UnderCut Anchor consists of an Anchor Sleeve,Flange Nut and Screw.
  • Anchor sleeve and screw length have to be matched to the hole depth required and to the panel bracket chosen.
  • The anchor sleeve is expanded to its original dimension by inserting the screw to a controlled depth,so that the sleeve sits snugly against the undercut section of the hole in the facade panel.



M8*35 (Hs=15) S12
Undercut hole on Fiber Cement



3.For use in:

Natural Stone | Artificial Panel |Fibre Cement | Ceramic | Porcelain Tiles



Ceramic Tile Undercut Anchor



4.How to Choose suitable Anchor Sleeve size according to your stone thickness ?

 1/2*stone thickness  < HS < 2/3* stone thickness

(For example : If your ceramic tile thickness is 9mm,we suggest to choose hs=5,the hole drilling depth is 5mm)



Jaring Undercut Anchor Sleeve All Size



5.How to calculate the length of the screw ?

   Screw Length >Hs+3mm(Alu Alloy clip thick)+6mm(nut thick)

  (For example : If your choose hs=5,we suggest to choose screw M6*16)



STAINLESS STEEL A2 UNDERCUT ANCHOR KUA01



6.Technical information



TECHNICAL DATA FOR ANCHOR SLEEVE S10



7.Undercut Anchor Fixing Systems Drawing



KUA-02 + Alu Clip R01 + SS/GI Bracket + Mechanical Anchor / Through Bolt



R01 Clip with Undercut Anchor KUA02 fixing on the fiber cement



Aluminum Alloy Pendant ZM01/H01 used with KUA02



Under Cut Anker KUA02 and Alu Alloy Bracket ZM01 fixing on the fiber cement



UnderCut Anker KUA-01 and Alu Bracket ZM01 fixing on the fiber cement



8.Square Washer with 2 Hex Hole S10 to fix Jaring anchor sleeve



square washer plate pad with hex hole to fix undercut anker



9. More photos of KUA-01 undercut anker



KUA01 and KUA02 on the fiber cement



Aluminum Alloy Bracket Pendant with Back Stone Anchor KUA01 and Adjusting screw



undercut anchor fixing on the ceramic tile



KUA01 ANCHOR FIXING ON CERAMIC



pick up easily the undercut anchor with ceramic tile by hand



KUA-01:  Screw + Anchor Sleeve + Flange Nut



HIGH QUALITY OF UNDERCUT ANCHOR MANUFACTURER



UNDERCUT ANCHOR KUA01 FULL SET



KUA01 M6*40 (HS=12)



10. Certificate and Test Report of Jaring Undercut Anchor

   Download Test Report on Computer:



Certificate of Conformity for KUA02



CE certificate of Jaring Undercut Anchor



Mill Test Certificate (MTC) of Undercut Anchor KUA01



undercut anchor Test Report from Isreal client
Pull Testing Certificate from Iran Client



Pull Out Testing Certificate of KUA anchor
Pull Off Testing Result of Undercut Anchor Bolt
Pull out testing result of Jaring Undercut Anchor



We do KUA01 Pull Out Testing at our factory with Pull Out testing machine



11. Jaring Undercut Anchors Building Facades Projects



Jaring Undercut Anchor Bolt for projects all over the world



12. Jaring Undercut Anchors Exported to all over the world in the past 15years.

   We are waiting for your join and choosing high quality Undercut Anchoring System from Jaring Facades!



Jaring Facades Clients from the countries all over the world



13. WHO WE ARE AND WHY CHOOSE US

  • JaringFacade is a company who focused on the quality,delivery time and after-sales services.
  • We can't promise price is the lowest in China,but we can promise our quality is the best.
  • We don't cheat anyone,we don't do one time business.
  • We have produced and exported undercut anchoring system,stone cladding fixings for 15years.
  • Most of our new clients are becoming long-term friends.
  • Even though we have done the best,there is still unhappy things happened in these years,
  • But we never avoid it,we always face the trouble and try the best to solve it with our clients.
