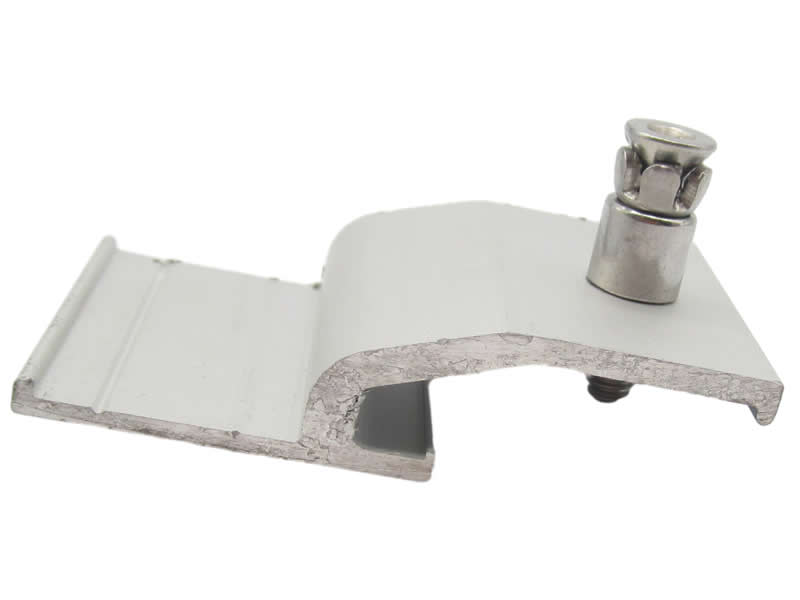

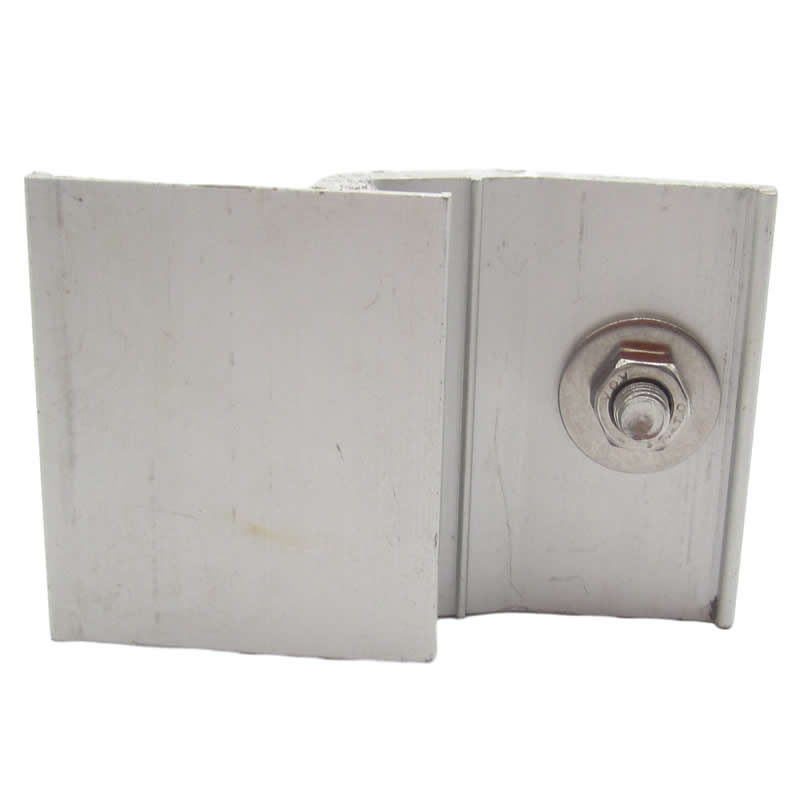

Aluminum Brick Wall Support System H03

Aluminum Brick Wall Support System

Series: H03

Material : 6063-T5

Suitable Undercut Anchor : PUA01/PUA02/PUA03/PUA04

The Aluminum Stone Brackets Cladding system is used for

 installation of ceramic or porcelain on facades of buildings.


1.Product Descriptions

Name: Aluminum Stone Brackets, Aluminum Roof Support System

Type: H03

Material: Aluminum Alloy 6063-T5

Size: 50*3mm, 50*4mm

Adjusting Screw Size: M5*16

Contains: Aluminum Brackets+Adjusting Screw+Undercut Bolts(PUA-01/PUA-02/PUA-03/PUA-04)


Mounting Systems Natural Stone Aluminium Angle Bracket


Trademark: Jaring

MOQ: 100pcs

Packing: 300pcs/Carton,16Kg/Carton. 24cartons/Pallet.

Delivery Time: Within 7days.

Payment Term: 30% as deposit,the balance is against the copy of B/L



Panel Subframing System



    Aluminum alloy stone brackets are used with adjusting screw,undercut anchors KUA & PUA series and L angle bracket,aluminum serrated square washer to fixing the panels (stone,marble,ceramic tile,fiber cement...) on the building facades.


Stone Cladding Support System H03


3.For use in:

Natural Stone | Artificial Panel |Fibre Cement | Ceramic | Porcelain Tiles



4.Choose the suitable Undercut Anchor Bolts size according to your stone thickness ?


Stone Thick>25mm,choose PUA Series Undercut Bolt


Stone Thick<25mm,choose KUA Series Undercut Anchor


(For example : If your ceramic tile thickness is 20mm,we suggest to choose KUA hs=15,the hole drilling depth is 15mm)


5. Aluminum Brick Wall Support System Technical information


Jaring Facades Aluminum Stone Brackets Fixing Installation


Aluminum Stone Bracket Fixing drawings


Aluminum Alloy Stone Brackets Anchoring System


6. Jaring Aluminum Stone Brackets Installation for Building Facades Projects


Aluminum Alloy Stone Brackets Fixing Systems


Aluminum Angle Brackets for Terracotta Panels


Aluminum Alloy T Brackets for Terracotta Panels


Stone Fixing Systems Projects


Curtain Wall Building Facades


Curtain Wall Stone Fixing Brackets


7. Jaring Alu Alloy Stone Brackets Exported to the countries in the past 15years.

   We are waiting for your join and choosing high quality Undercut Anchoring System from Jaring Facades!



8. Jaring Aluminum Stone Brackets Production in Factory and Packing Photos


Aluminum Alloy Stone Angle Brackets H02 Factory


Aluminum Alloy Stone Angle Brackets H01 6063 T5


Jaring Aluminum Alloy Stone Angle Brackets
Alu Alloy Stone Clips H01 H02 Production


Stone Anchor Brackets Aluminum material


Aluminum Marble Brackets with PUA anchor bolt


SS304 Adjusting Screw M5*16 for Alu Brakets H01 H02


Jaring Facades Packing and Delivery



  • JaringFacades is a company who focused on the quality,delivery time and after-sales services.
  • We can't promise price is the lowest in China,but we can promise our quality is the best.
  • We don't cheat anyone,we don't do one time business.
  • We have produced and exported undercut anchoring system,stone cladding fixings for 15years.
  • Most of our new clients are becoming long-term friends.
  • Even though we have done the best,there is still unhappy things happened in these years,
  • But we never avoid it,we always face the trouble and try the best to solve it with our clients.
