304/A2 316/A4 Hex Bolt

Bolt is one kind of fastener,

it should be matched with nut to fasten

and connect two parts together.

This is called bolt connection.

Bolt has a threaded shaft,

with a wider head on one end,

and it has a variety of head designs

(Hex Head,Allen Head,Flange Head,

T Head,Square Head,Round Head...)
Inquiry

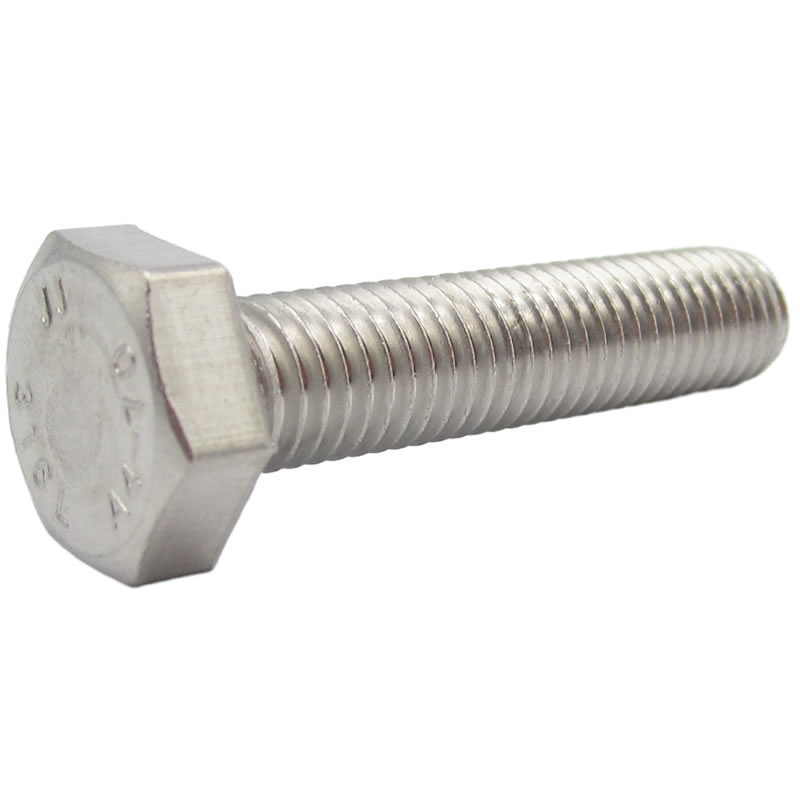

316L A4-70 JJ Stainless Steel Hex Head Bolt M8*80



Stainless Steel Fastener Manufacturer in China Cheap Price



Stainless Steel 304 A2 316 A4 Hex Head Bolt DIN933 M10*80



Stainless Steel 304 A2 316 A4 Hex Head Bolt DIN933 M8*30



1.Product Description

Item: Hex Bolt DIN933

Diameter: M6-M12  1/4''-1-1/2''

Length: 10-200mm  1/2''-8''

Size: M6*80 M8*25 M8*30 M8*60 M8*80 M10*30

Material: SS201,SS202,SS304/A2,SS316/A4

Bolt Head Mark: JJ HJ M



TradeMark: JARING

Certificate:  ISO9001,SGS

Min Order: 1,000pcs

Packing: In cartons and then on pallets

Delivery Term:  FOB/C&F/CIF

Lead Time: Within 10days after the order is confirmed

Payment Term:  30% as deposit,the balance is against the copy of B/L.



Stainless Steel Grade 316 A4-70 Fastener Hex Head Bolt DIN933 M8*25



2.Technical Data of Hex Bolt (DIN933)



Stainelss Steel 201 202 304 316 Hex Head Bolt DIN933 Technical Data



3.Why Choose Jaring Fasteners



Leading Manufacturer of Stainless Steel Fasteners



Real Photos of Jaring Fasteners(Bolts/Nuts/Screws/Washers/Anchors)



Packing and Delivery of Jaring Fasteners



4.Chemical Composition of SS304 VS SS316

Most of our clients don't know the difference between stainless steel 304 and 316.

We have made a form to show the different chemical components clearly.



STAINLESS STEEL GRADE 304 & 316
ELEMENT % SS304 SS316 / SS316L
Carbon (C) Max 0.08

316  Max 0.08

316L Max 0.03
Chromium (Cr) 18.0~20.0 16.0~18.0
Manganese (Mn) Max 2.0   Max 2.0
Nickel (Ni) 8.0~10.0 10.0~14.0
Phosphorus (P) Max 0.045 Max 0.045
Sulphur (S) Min 0.03 Min 0.03
Silicon (Si) 1.00 1.00
Molybdenum (Mo) / 2.0~3.0
Iron (Fe) Balance Balance





5. 100% Real Packing Photos of Jaring Bolts





































Jaring Fasteners - Bolts





Jaring Fasteners and Stone Fixing Systems
